Elation releases new all-weather LED matrix panel

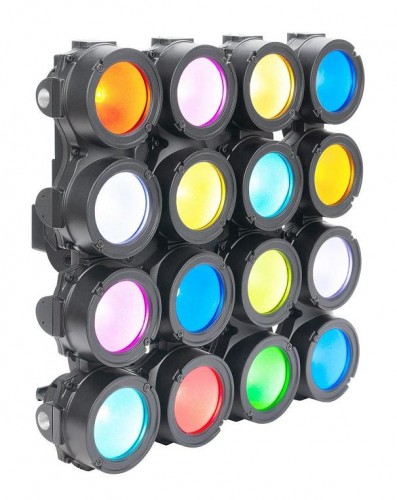

Elation Professional is again expanding on its line of multi-environmental IP-rated products with the new Cuepix 16 IP. The Cuepix 16 IP is a 4x4 matrix LED blinder and effect panel with all-weather IP65 protection. An updated version of the company’s Cuepix Panel, a 5 x 5 LED matrix panel, the Cuepix 16 IP fulfills the need for more IP-rated blinder/effect options.



The sleekly-designed Cuepix 16 IP houses 16 long-life 30 W RGBA COB LEDs for a full spectrum of custom colors (saturates to pastels) with no pixelated rainbow shadows. The added amber LED compared to the RGB-based Cuepix Panel extends the possible range of colors and gives more control over white balance, producing a better warm white. The COB LEDs give a higher-density output and a more even light distribution.



Each COB module is individually controllable for a wider scope of design possibilities while RGB, dynamic amber and pixel flip modes add to its creative potential. The five included pixel flip modes enable users to uniformly configure all pixels in multi-panel configurations regardless of their installation orientation.



The high-power LED color matrix projects a 62° beam angle with an 87° field angle. When used with cameras, the silent fixture works flicker-free due to its user-adjustable LED refresh rate and Gamma brightness settings. The Cuepix 16 IP dims smoothly all the way to zero with adjustable dimming curves included for programming ease. The fixture also includes an adjustable high-speed strobe (1-18 fps).



The Cuepix 16 IP delivers a 4 x 4 semi-transparent blow-through design that keeps the weight down (33.0 lbs., 15 kg) and allows multiple fixtures to be linked together to create horizontal and vertical arrays. Versatile rigging options include 90° adjustable and fixed yoke brackets with 3-positon mounting holes. Features like integrated alignment pins and interlocks make multiple panel matrix designs easy to set up and disassemble. Optional Omega Brackets are also available.



Professional control options include DMX (14 DMX channel modes from 3-128 channels) and RDM (Remote Device Management) while on-board Art-Net and KlingNet protocols allow for more creative pixel-mapping designs. The fixture is outfitted with IP-rated 5pin DMX, RJ45 EtherCon, and Seetronic Powerkon IP65 in/out connections.



A 4-button control panel with LCD menu display allows for navigation through DMX and manual settings and an auto-sensing power supply allows the unit to operate anywhere in the world. The Cuepix 16 IP has a maximum power consumption of 520 W.



www.elationlighting.com
